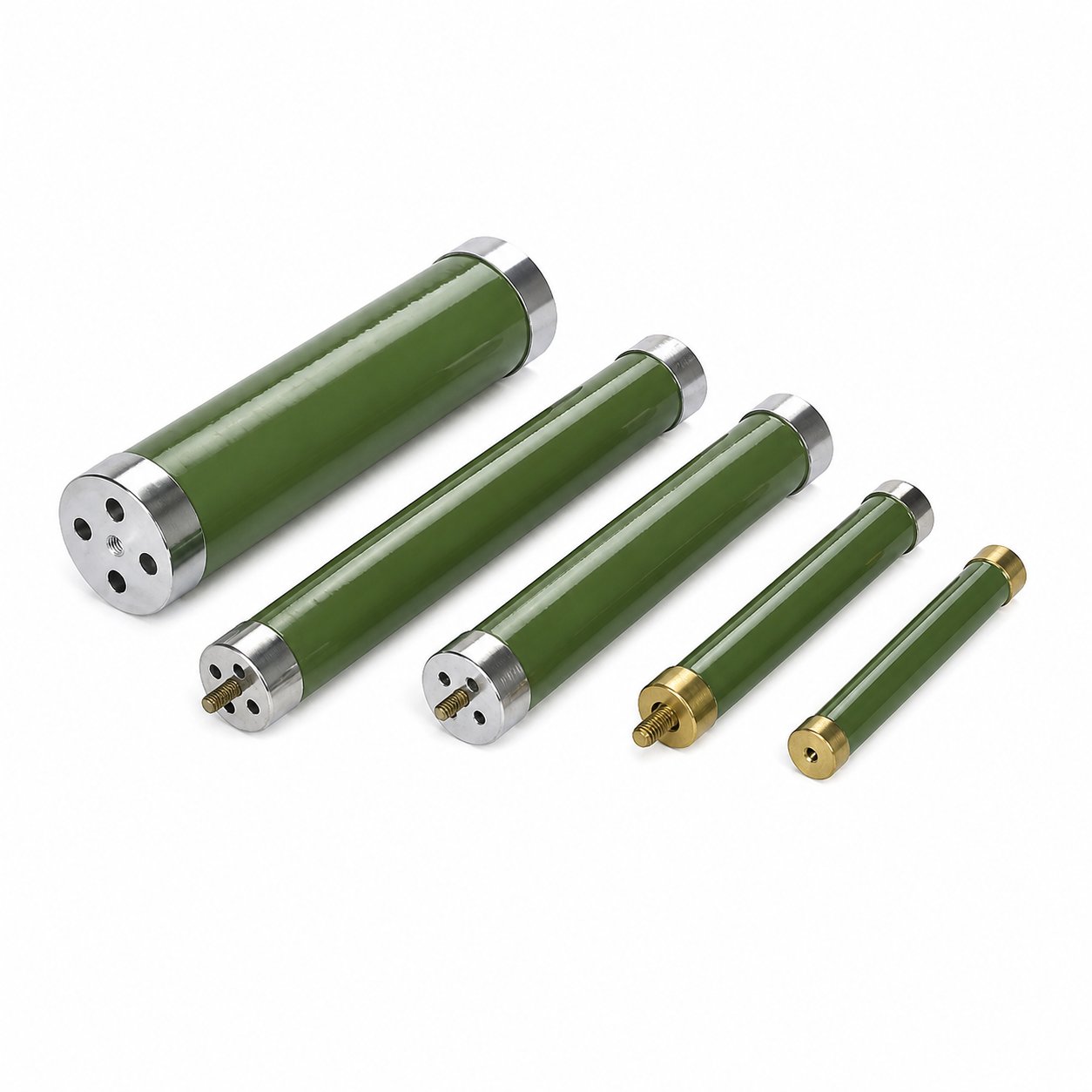

The high-voltage resistor series uses specialized resistance materials and multi-layer insulation design to operate stably under thousands or even hundreds of thousands of volts — delivering excellent dielectric strength, pulse capability and an extremely low voltage coefficient (VCR). Widely used in X-ray / CT imaging, high-voltage power supplies, energy-storage discharge, lightning surge protection, HV measurement instruments, laser power supplies, electrical testing and other critical applications requiring stable, reliable HV components.
Key Features
Ultra-High Voltage Capability
- Working voltage 1kV ~ 100kV+
- Transient withstand 2× nominal
Low Voltage Coefficient (Low VCR)
- VCR ≤ 5 ppm/V — stable resistance under HV
- Ideal for precision measurement and HV dividers
High Pulse & Discharge Tolerance
- Withstands tens of joules of single-pulse energy
- Suitable for X-ray, laser and energy-storage discharge applications
Multi-Layer Insulation
- Epoxy / silicone / ceramic composite insulation
- Anti-creep and anti-partial-discharge (PD) design
Wide Operating Temperature Range
- Operating temperature -55°C ~ +200°C
- Suitable for thermal-cycling and vibration environments
Flexible Customization & Packaging
- Cylindrical, planar (chip) and modular packages
- Custom resistance, leads and form factors
Applications
Typical Applications
X-ray / CT
HV Power Supply
Energy-Storage Discharge
Laser Power Supply
HV Measurement
Lightning Surge Protection
Sample Request
Sample Request
Standard samples are provided free of charge in reasonable quantities (shipped within 2–3 business days). Custom samples are delivered within 2–4 weeks. Please use the form on the right to tell us:
- Company and contact details
- Target part number or key specs (power / resistance / package)
- Application scenario and estimated annual volume
- Shipping address and expected delivery date
