Aluminum-housed resistors use an extruded aluminum-alloy enclosure with non-inductive wirewound resistance wire potted in inorganic silicone gel — delivering excellent heat dissipation, mechanical strength and vibration resistance for high-power, high-heat applications. Used wherever energy dissipation (heat) plus high power and high stability are required: industrial equipment / power systems, new-energy / energy-storage systems, automotive electronics / EVs, test & lab equipment and more.
Key Features
Efficient Thermal Design, Stable Output
- Extruded aluminum-alloy housing with high thermal conductivity
- Stable temperature rise under continuous full-load operation
High Power Handling for Demanding Conditions
- Single units cover the full 5W ~ 1500W power range
- High-temperature, vibration- and transient-overload resistant
Reliable Wirewound Construction
- Internal non-inductive winding for stable performance
- Inorganic silicone potting for high mechanical strength
Excellent Overload & Pulse Capability
- Withstands short-duration 10× rated power surges
- Suited to braking / discharge and other high-energy applications
Wide Spec Variety, Flexible Selection
- Multiple power, resistance and form-factor options
- Custom non-standard parts and tooling supported
Easy Installation, Strong Compatibility
- Standard M4 / M5 mounting holes
- Can be integrated with heatsinks
Excellent Insulation & Safety
- Internal silica filling, insulation strength ≥ 2500VAC
- Compliant with RoHS / REACH
Models
Models
50-1500W · Custom Resistance

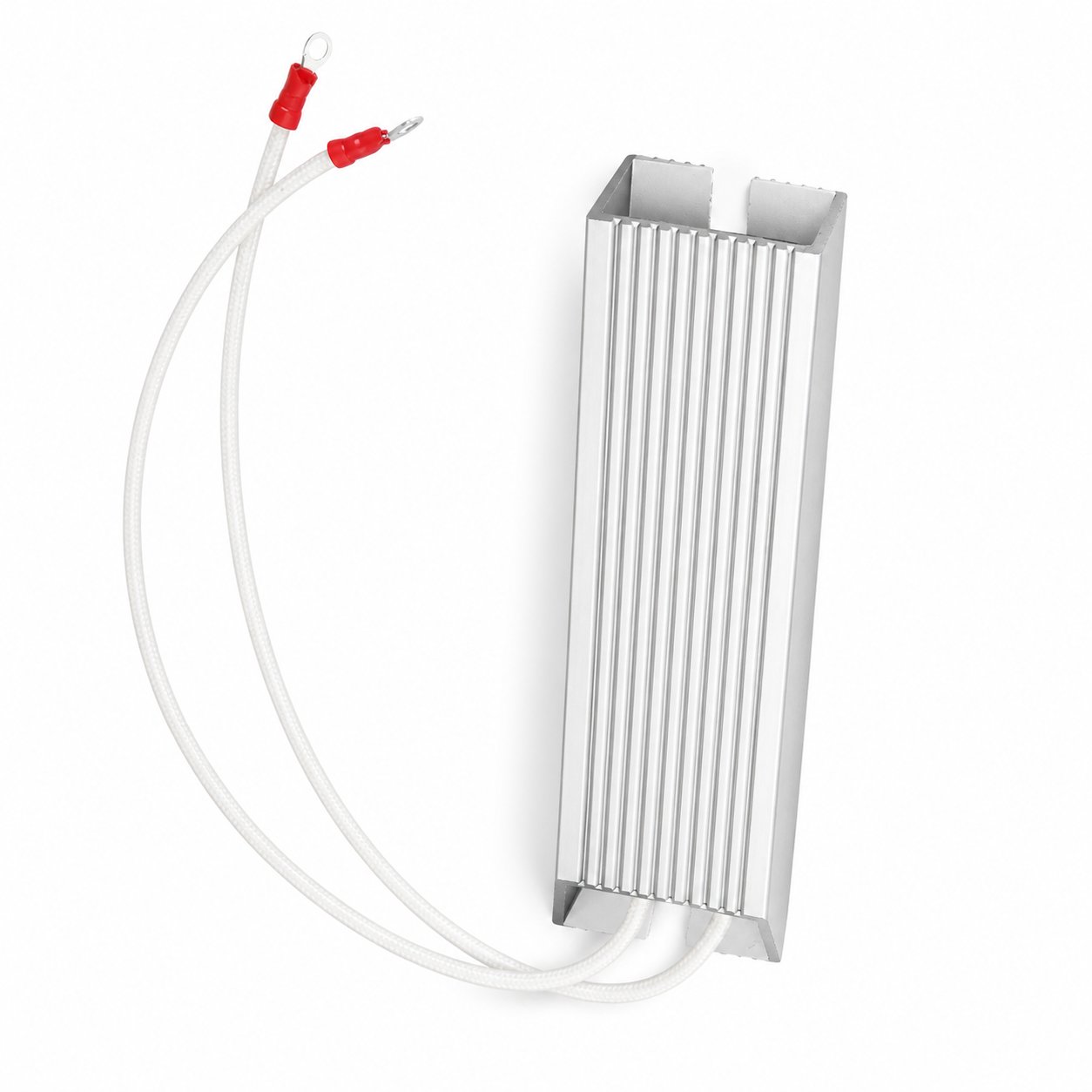

Trapezoidal Aluminum Housed Resistor
5-1000W · Custom Resistance

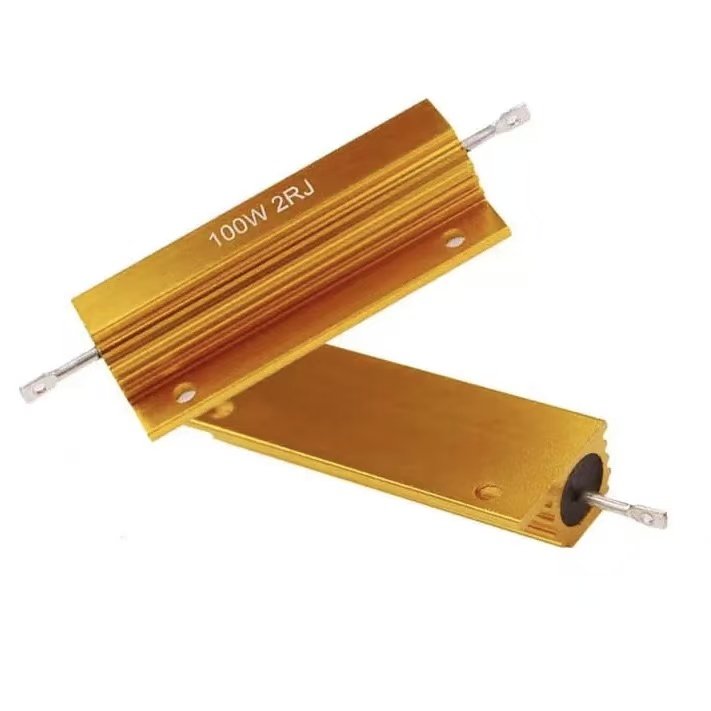

Gold Aluminum Housed Resistor
Custom Resistance

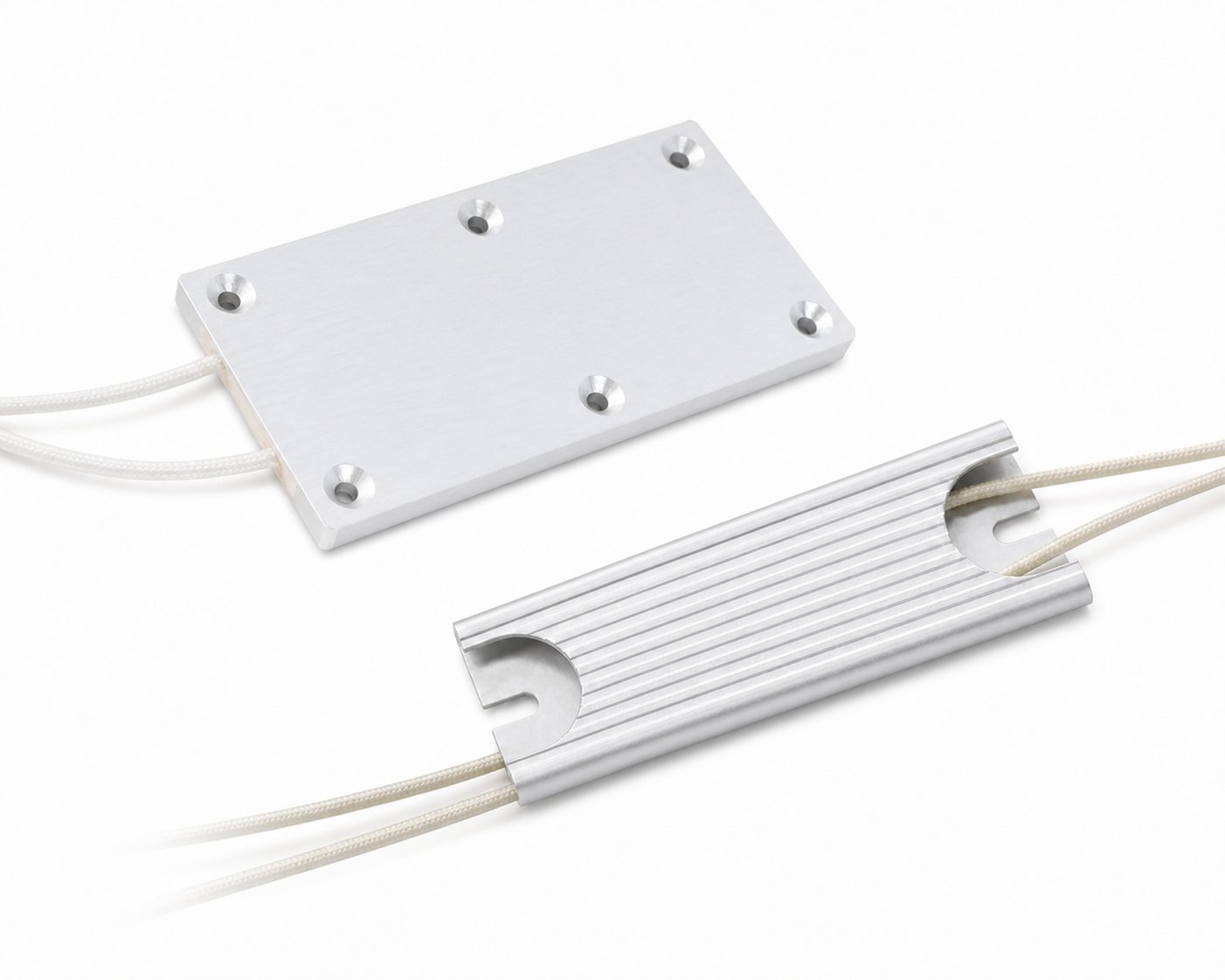

Slim Aluminum Housed Resistor
Custom Resistance

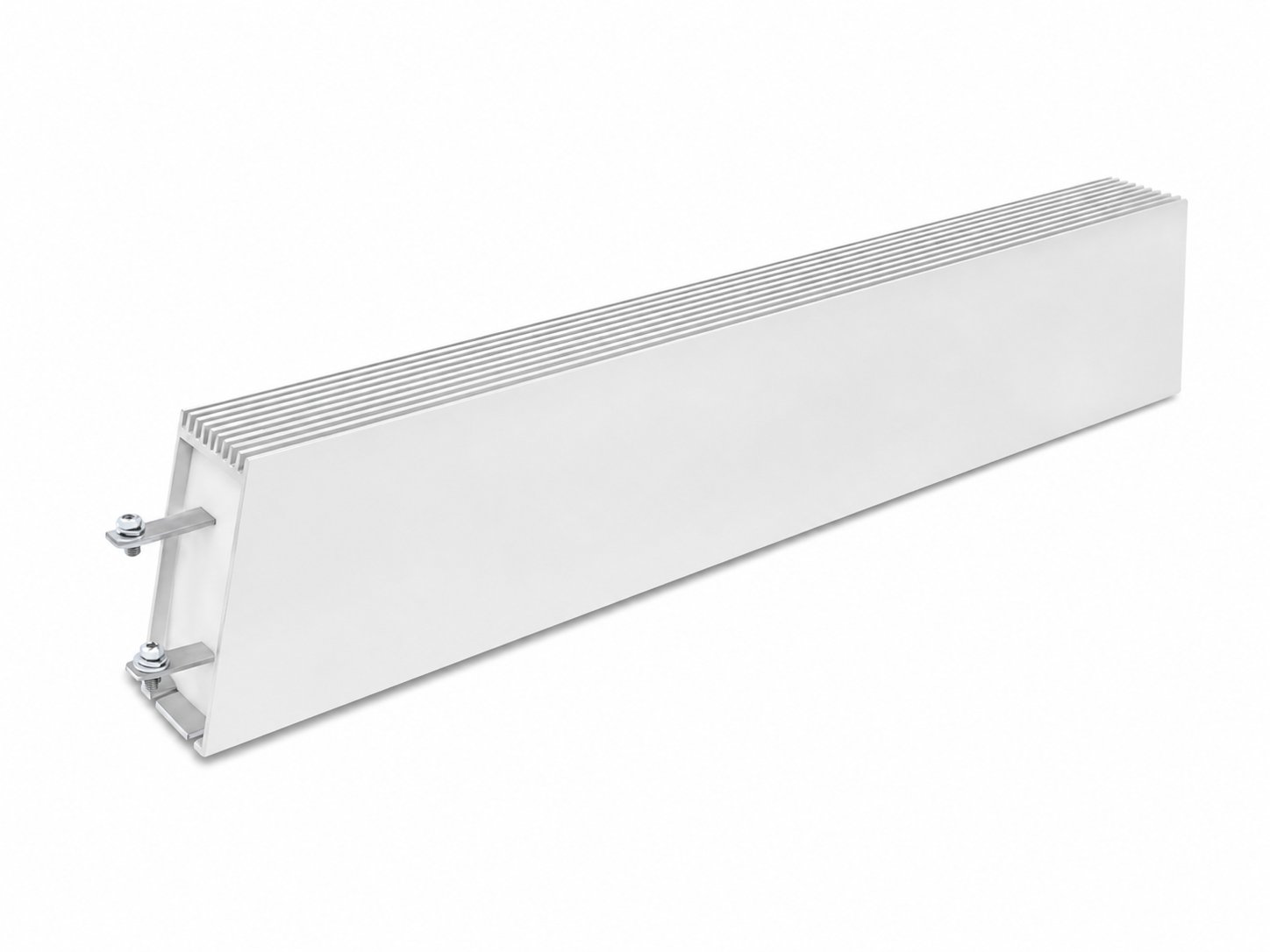

Vertical Aluminum Housed Resistor
Custom Resistance

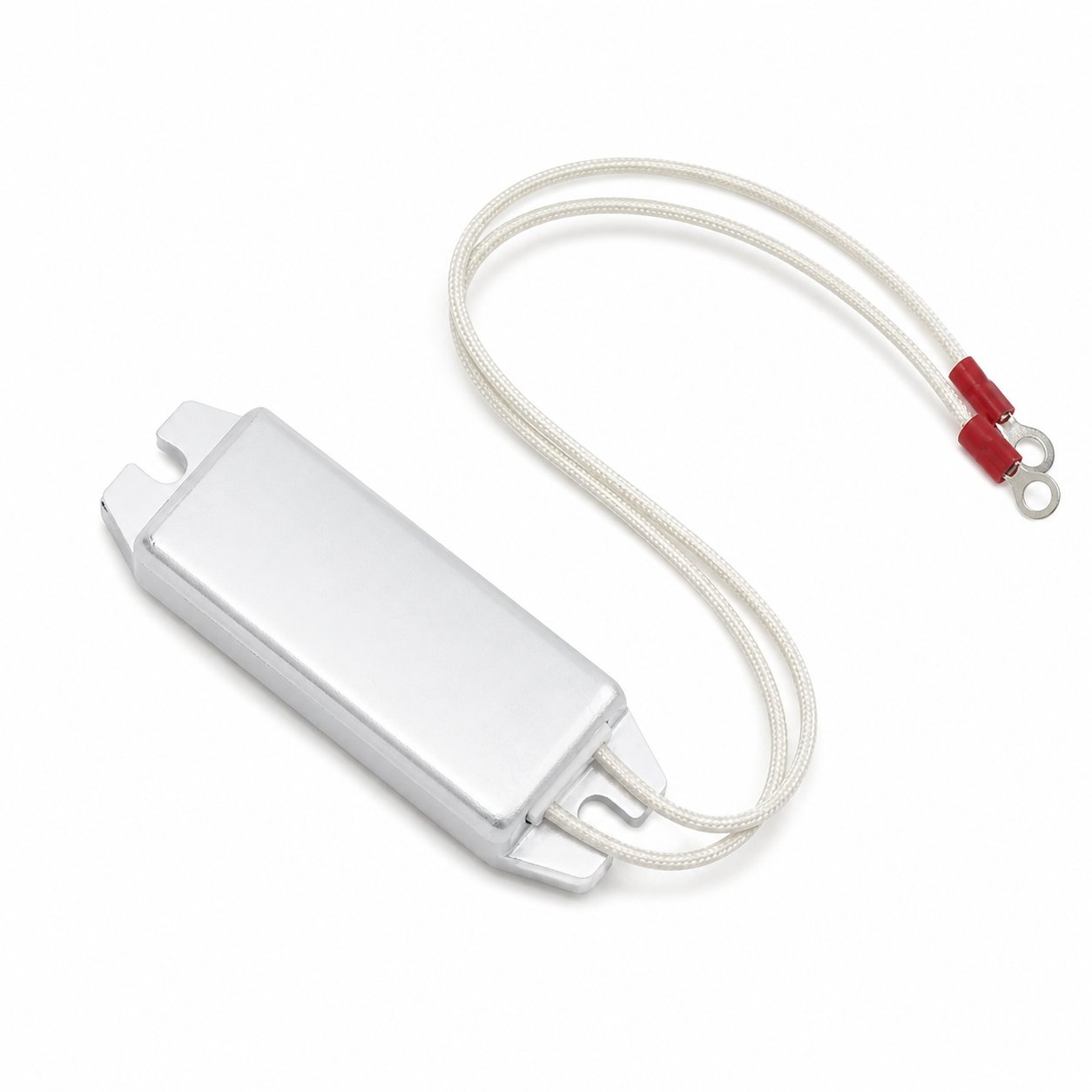

Boat-Type Aluminum Housed Resistor
Custom Resistance

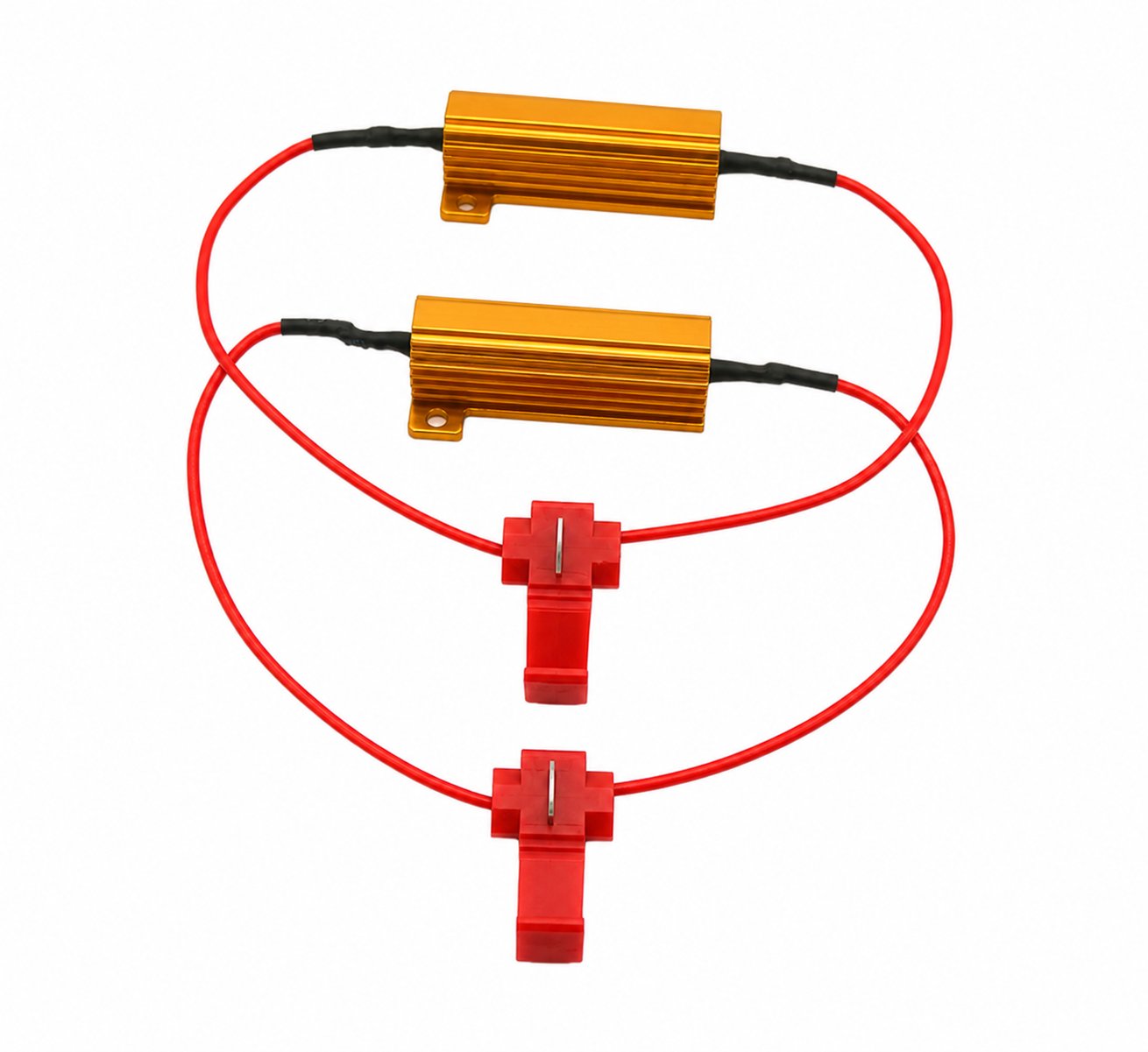

Aluminum Housed Resistor with High-Temp Wire
Custom Resistance

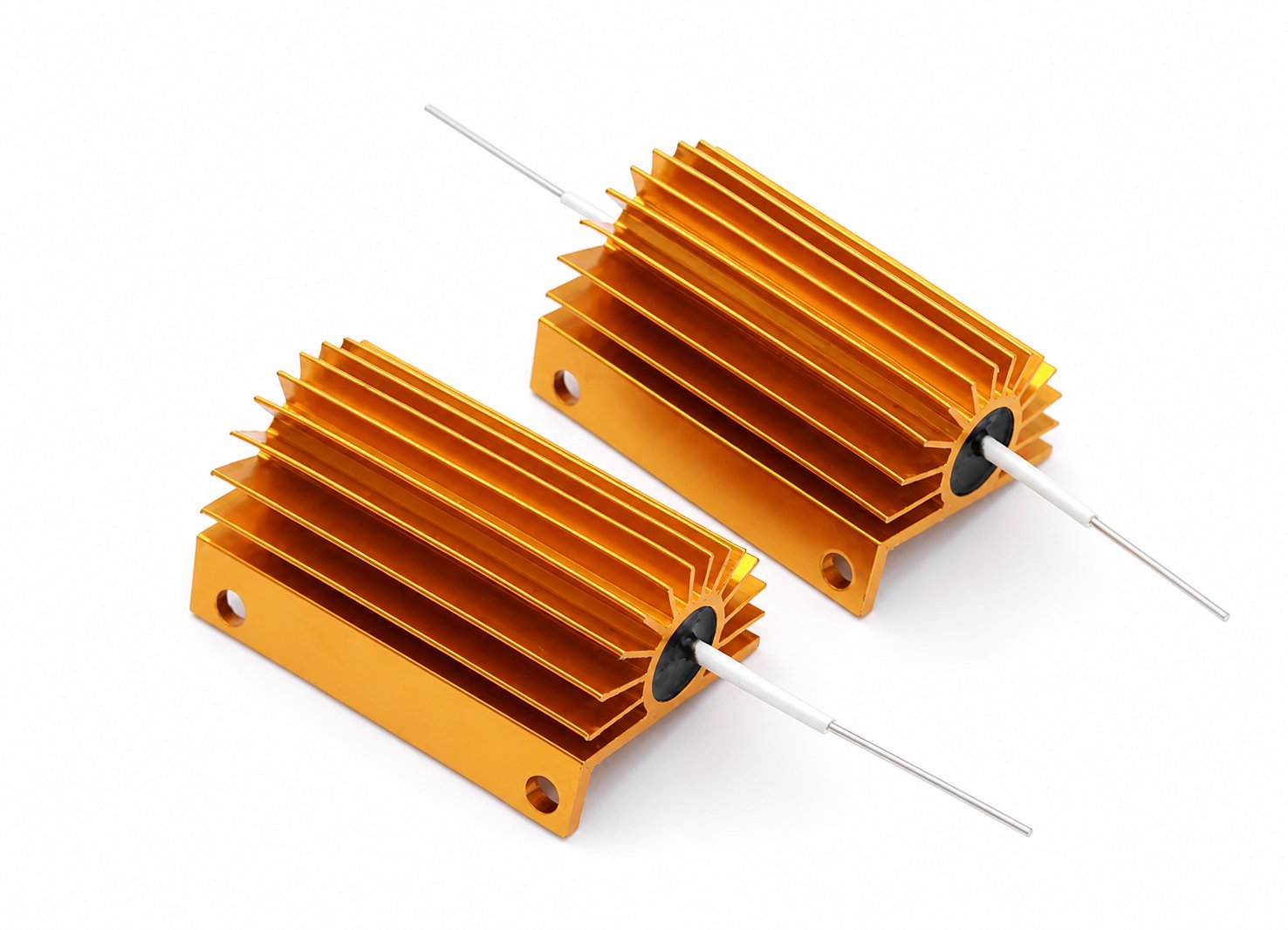

Heatsink Metal Resistor
Custom Resistance

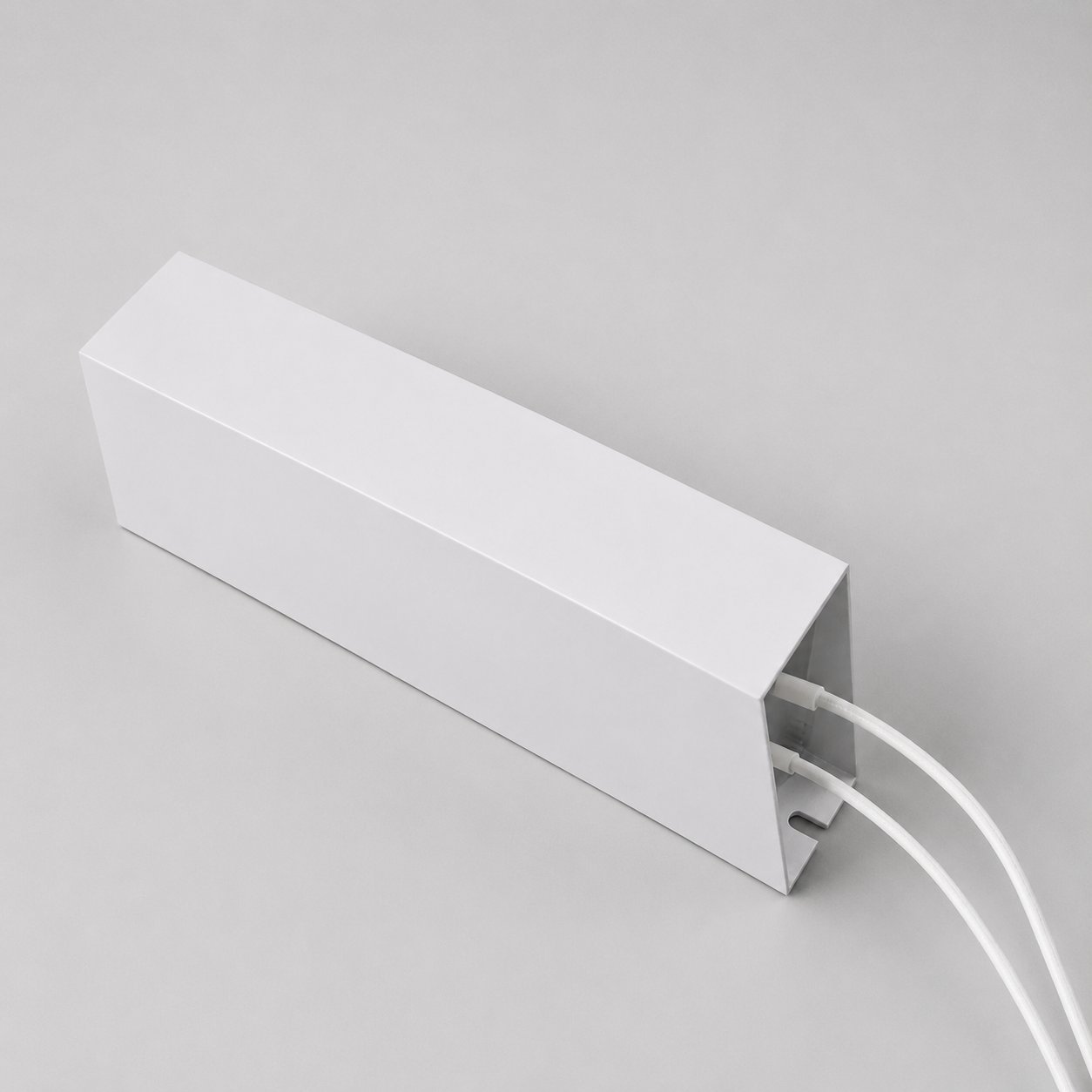

Aluminum Housed Braking Resistor
Applications
Typical Applications
Inverter Braking
Servo Drives
Elevator Regenerative Loops
Wind Power Converters
Solar Inverters
EV Charging
Sample Request
Sample Request
Standard samples are provided free of charge in reasonable quantities (shipped within 2–3 business days). Custom samples are delivered within 2–4 weeks. Please use the form on the right to tell us:
- Company and contact details
- Target part number or key specs (power / resistance / package)
- Application scenario and estimated annual volume
- Shipping address and expected delivery date
